Топливный бак и горловина LEXUS GS300/400/430, 1997/08 - 2005/01, 3 литра, 24 клапана, DOHC, EFI, автомат

Каталог

Америка

Модель

LEXUS GS300/400/430

Двигатель

3 литра, 24 клапана, DOHC, EFI

Трансмиссия

автомат

Опции

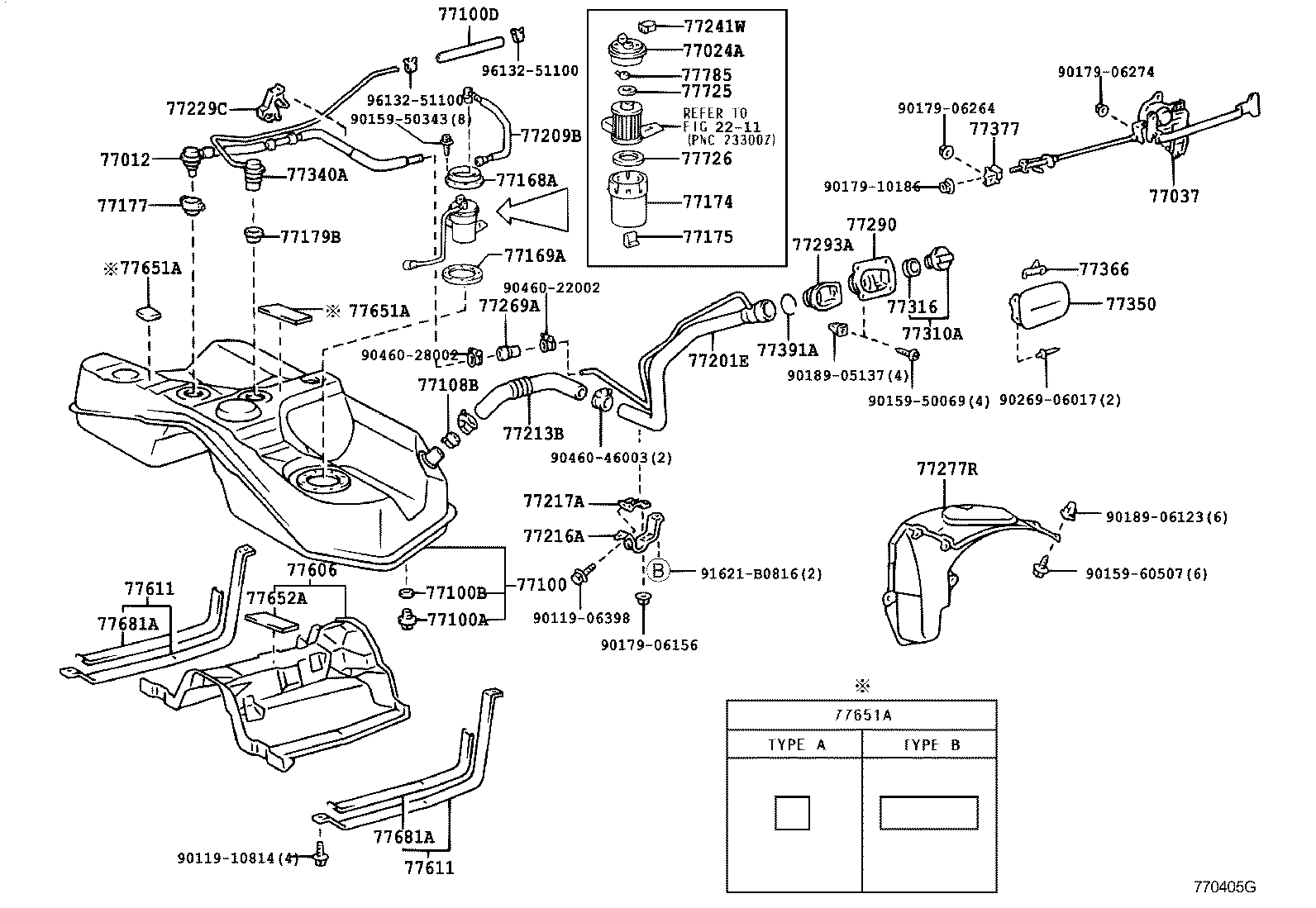

Код

Описание

2211

переход к группе запчастей

77012

TUBE SUB-ASSY, FUEL TANK BREATHER

77024A

PLATE SUB-ASSY, FUEL SUCTION

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77108B

VALVE SUB-ASSY, FUEL TANK FILLER CHECK

77168A

PLATE, FUEL TANK VENT TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77175

SUPPORT, FUEL SUCTION, NO.2

77177

GASKET, CHECK VALVE

77179B

GASKET, FUEL TANK EVAPORATION VENT TUBE

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77229C

CLAMP, BREATHER TUBE

77241W

CLIP, TUBE JOINT

77269A

HOSE, FUEL TANK BREATHER

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77340A

VALVE ASSY, FUEL CUT OFF W/TUBE

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391A

RING, FUEL INLET BOX

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611

BAND, FUEL TANK

77611

BAND, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77681A

SEAT, FUEL TANK BAND

77681A

SEAT, FUEL TANK BAND

77725

CUSHION, FUEL FILTER, NO.1

77726

CUSHION, FUEL FILTER, NO.2

77785

HARNESS, FUEL PUMP

9011906398

Крепеж

9011910814

Крепеж

9015950069

Крепеж

9015950343

Крепеж

9015960507

Крепеж

9017906156

Крепеж

9017906264

Крепеж

9017906274

Крепеж

9017910186

Крепеж

9018905137

Крепеж

9018906123

Крепеж

9026906017

Крепеж

9046022002

Крепеж

9046028002

Крепеж

9046046003

Крепеж

91621B0816

Крепеж

9613251100

Крепеж

9613251100

Крепеж

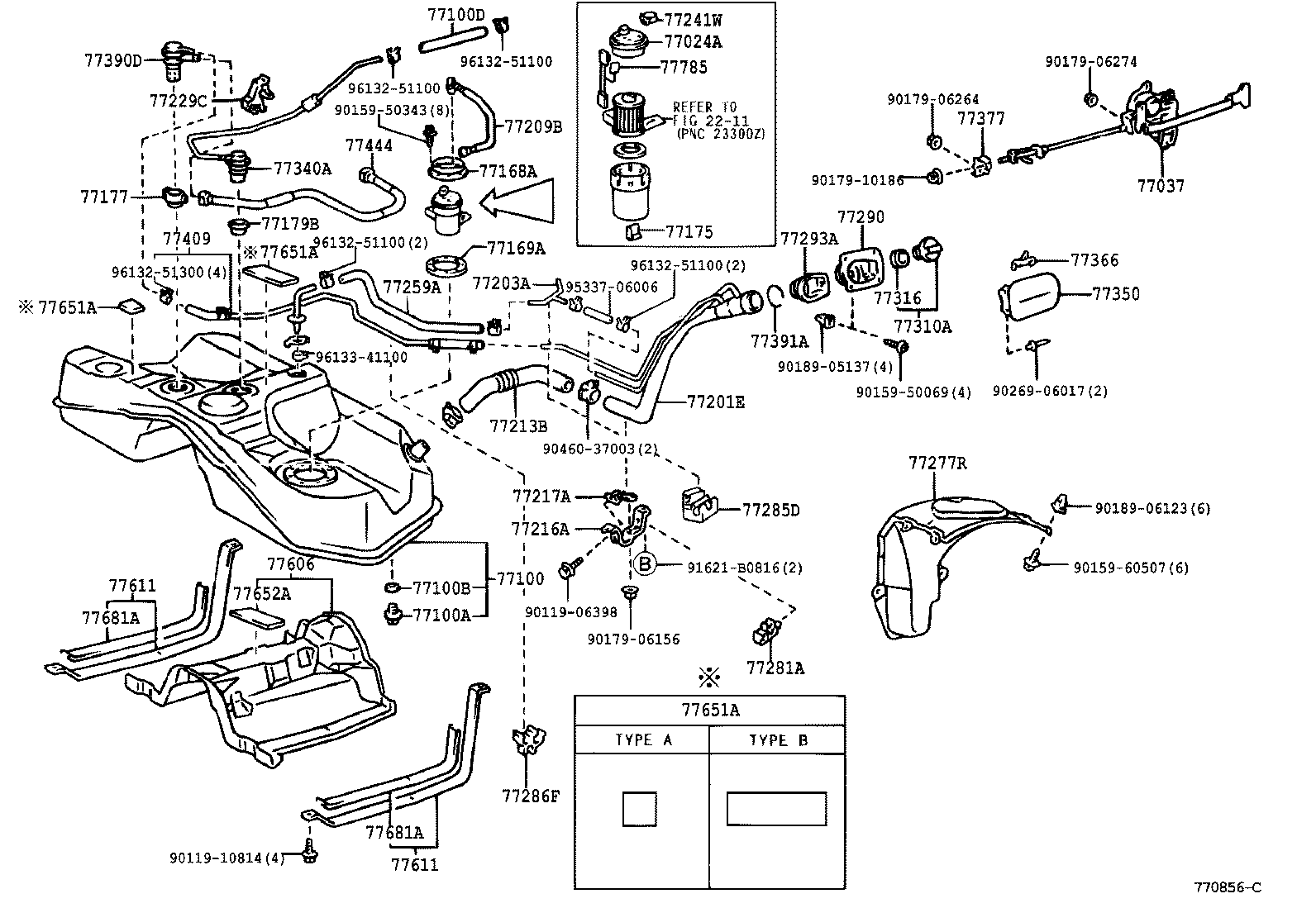

Код

Описание

2211

переход к группе запчастей

77024A

PLATE SUB-ASSY, FUEL SUCTION

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77168A

PLATE, FUEL TANK VENT TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77175

SUPPORT, FUEL SUCTION, NO.2

77177

GASKET, CHECK VALVE

77179B

GASKET, FUEL TANK EVAPORATION VENT TUBE

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77229C

CLAMP, BREATHER TUBE

77235

TUBE, FUEL TANK BREATHER, NO.1

77241W

CLIP, TUBE JOINT

77259A

HOSE, FUEL(FOR BREATHER TUBE)

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77281A

CLAMP, FUEL FILLER PIPE

77285D

CLAMP, FUEL TUBE, NO.1

77286F

CLAMP, FUEL TUBE, NO.2

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77340A

VALVE ASSY, FUEL CUT OFF W/TUBE

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77390D

VALVE ASSY, FUEL TANK OVER FILL CHECK

77391A

RING, FUEL INLET BOX

77409

HOSE SUB-ASSY, FUEL, NO.3

77444

HOSE, FUEL TANK VENT

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611

BAND, FUEL TANK

77611

BAND, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77681A

SEAT, FUEL TANK BAND

77681A

SEAT, FUEL TANK BAND

77725

CUSHION, FUEL FILTER, NO.1

77726

CUSHION, FUEL FILTER, NO.2

77785

HARNESS, FUEL PUMP

9011906398

Крепеж

9011910814

Крепеж

9015950069

Крепеж

9015950343

Крепеж

9015960507

Крепеж

9017906156

Крепеж

9017906264

Крепеж

9017906274

Крепеж

9017910186

Крепеж

9018905137

Крепеж

9018906123

Крепеж

9026906017

Крепеж

9046037003

Крепеж

91621B0816

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251300

Крепеж

9613341100

Крепеж

9613341100

Крепеж

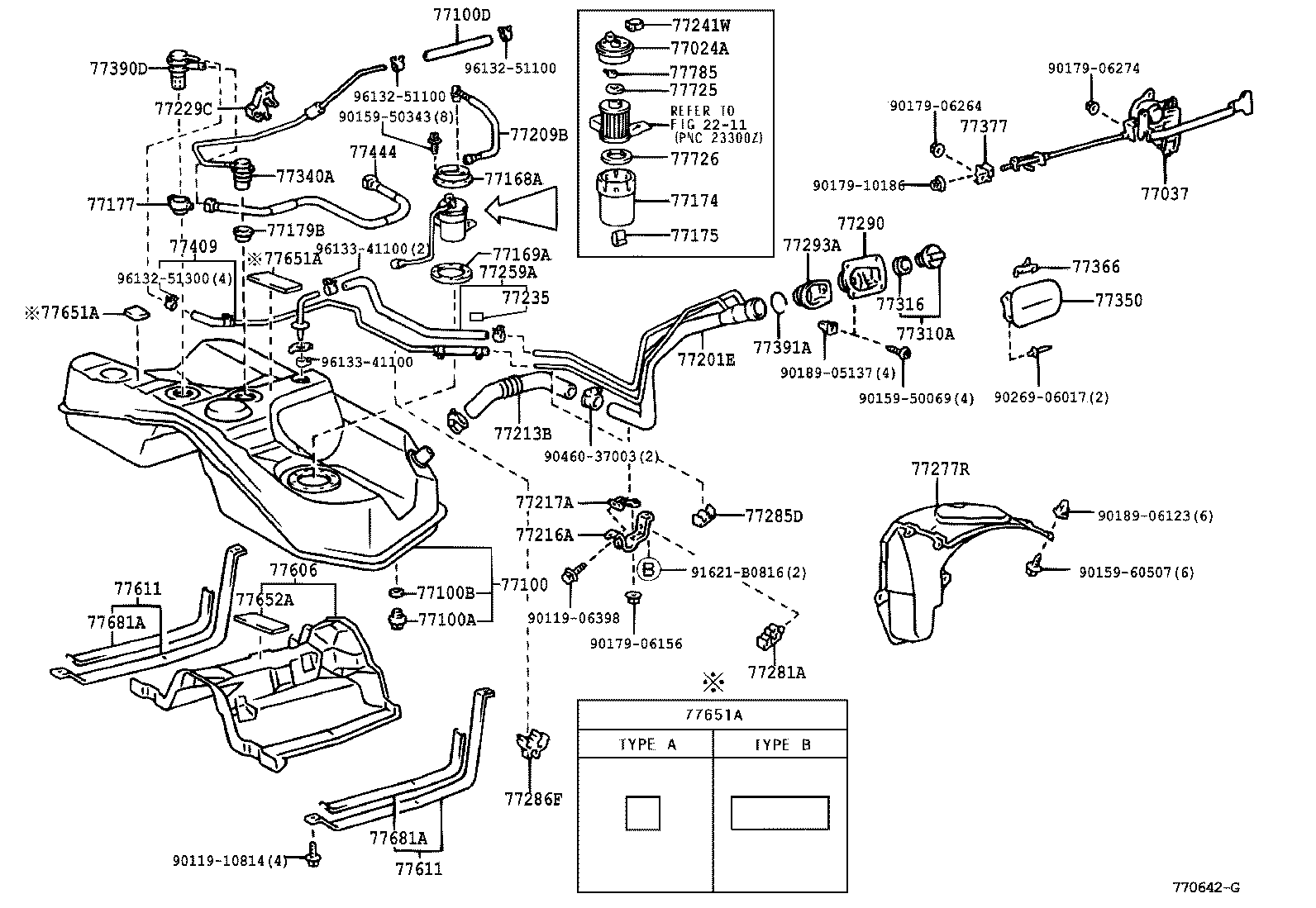

Код

Описание

2211

переход к группе запчастей

77024A

PLATE SUB-ASSY, FUEL SUCTION

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77168A

PLATE, FUEL TANK VENT TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77175

SUPPORT, FUEL SUCTION, NO.2

77177

GASKET, CHECK VALVE

77179B

GASKET, FUEL TANK EVAPORATION VENT TUBE

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77203A

TUBE SUB-ASSY, FUEL SUCTION

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77229C

CLAMP, BREATHER TUBE

77241W

CLIP, TUBE JOINT

77259A

HOSE, FUEL(FOR BREATHER TUBE)

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77281A

CLAMP, FUEL FILLER PIPE

77285D

CLAMP, FUEL TUBE, NO.1

77286F

CLAMP, FUEL TUBE, NO.2

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77340A

VALVE ASSY, FUEL CUT OFF W/TUBE

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77390D

VALVE ASSY, FUEL TANK OVER FILL CHECK

77391A

RING, FUEL INLET BOX

77409

HOSE SUB-ASSY, FUEL, NO.3

77444

HOSE, FUEL TANK VENT

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611

BAND, FUEL TANK

77611

BAND, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77681A

SEAT, FUEL TANK BAND

77681A

SEAT, FUEL TANK BAND

77785

HARNESS, FUEL PUMP

9011906398

Крепеж

9011910814

Крепеж

9015950069

Крепеж

9015950343

Крепеж

9015960507

Крепеж

9017906156

Крепеж

9017906264

Крепеж

9017906274

Крепеж

9017910186

Крепеж

9018905137

Крепеж

9018906123

Крепеж

9026906017

Крепеж

9046037003

Крепеж

91621B0816

Крепеж

9533706006

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251300

Крепеж

9613341100

Крепеж

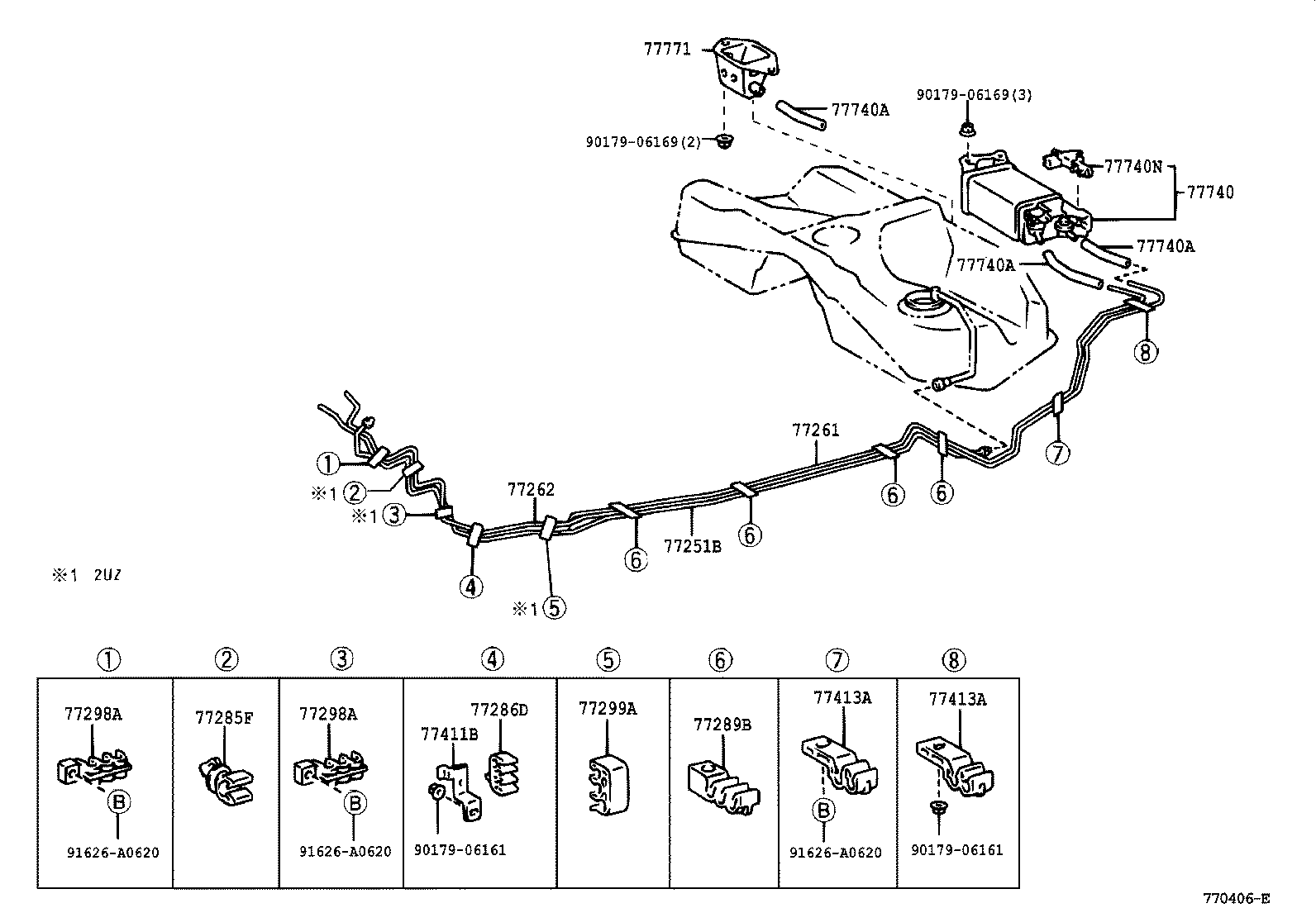

Код

Описание

77251B

TUBE, FUEL MAIN

77261

TUBE SUB-ASSY, FUEL EMISSION

77262

TUBE, FUEL EMISSION, NO.2

77285F

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77289B

CLAMP, FUEL TUBE, NO.3

77298A

CLAMP, FUEL TUBE, NO.4

77298A

CLAMP, FUEL TUBE, NO.4

77299A

CLAMP, FUEL TUBE, NO.5

77411B

SUPPORT, FUEL TUBE GROMMET, NO.1

77413A

SUPPORT, FUEL TUBE GROMMET, NO.3

77413A

SUPPORT, FUEL TUBE GROMMET, NO.3

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740N

VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER)

77771

TANK, CHARCOAL CANISTER

9017906161

Крепеж

9017906161

Крепеж

9017906169

Крепеж

9017906169

Крепеж

91626A0620

Крепеж

91626A0620

Крепеж

91626A0620

Крепеж

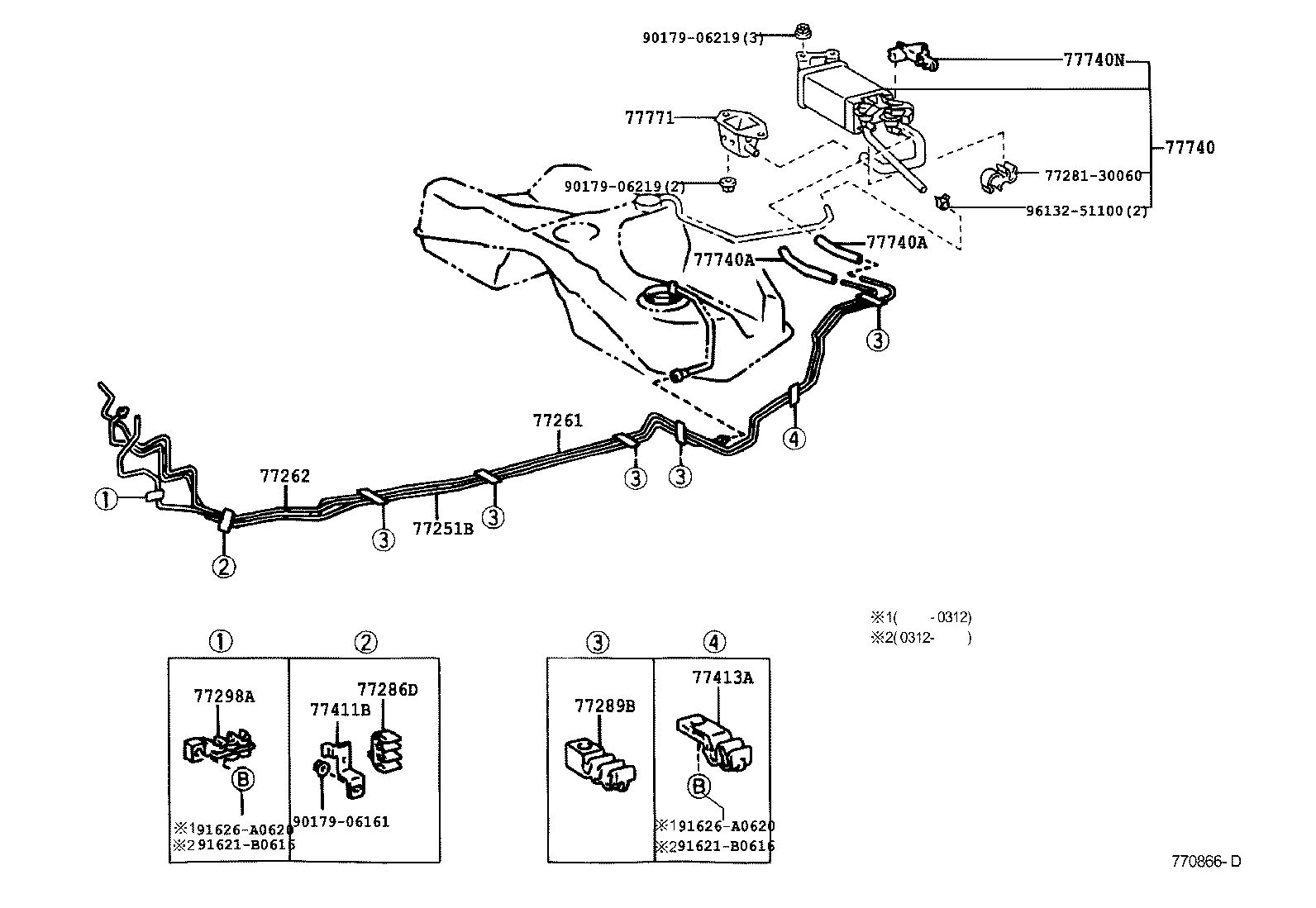

Код

Описание

77251B

TUBE, FUEL MAIN

77261

TUBE SUB-ASSY, FUEL EMISSION

77262

TUBE, FUEL EMISSION, NO.2

7728130060

Крепеж

77286D

CLAMP, FUEL TUBE, NO.2

77289B

CLAMP, FUEL TUBE, NO.3

77298A

CLAMP, FUEL TUBE, NO.4

77411B

SUPPORT, FUEL TUBE GROMMET, NO.1

77413A

SUPPORT, FUEL TUBE GROMMET, NO.3

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740N

VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER)

77771

TANK, CHARCOAL CANISTER

9017906161

Крепеж

9017906219

Крепеж

9017906219

Крепеж

91621B0616

Крепеж

91621B0616

Крепеж

91626A0620

Крепеж

91626A0620

Крепеж

9613251100

Крепеж

Топливный бак и горловина LEXUS GS300/400/430, 1997/08 - 2005/01, 3 литра, 24 клапана, DOHC, EFI, автомат
